Architecture
- Beckstone LED Paver Light

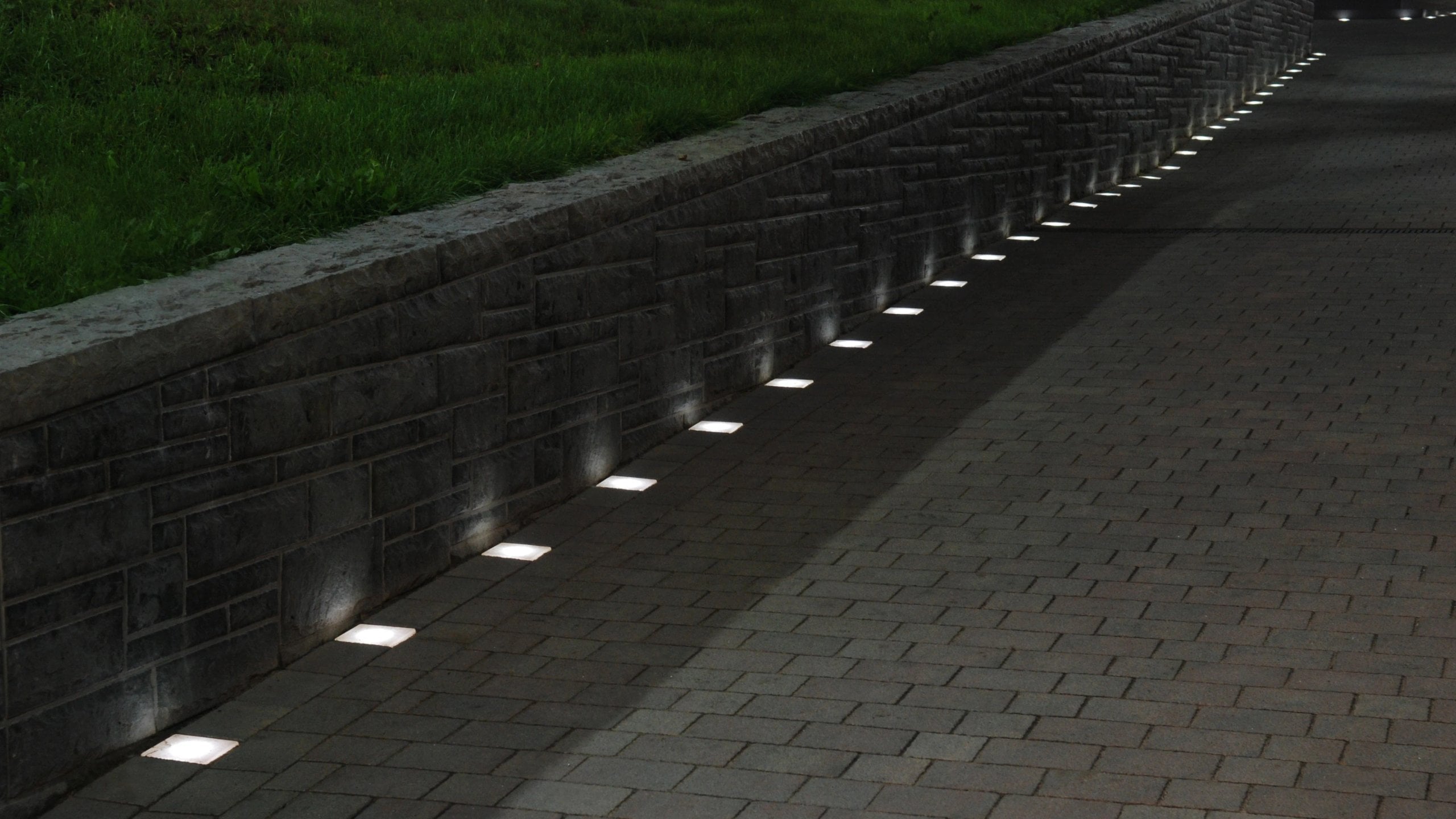

In entrance areas, ground-integrated light creates a clear guiding structure.
The planning problem
In the entrance area, our lighting solution provides light and creates a clear guiding structure: visitors are subtly guided, paths are clearly recognizable, and the atmosphere is deliberately staged.
Beckstone
On spacious roof terraces, the selective embedding of the lights in the floor creates a harmonious interplay of open space and light. Bar areas, seating islands, and green spaces are visually connected and embedded in a uniform, high-quality lighting scheme.
For access routes and connecting paths, the combined effect of the lighting elements and the surroundings ensures better orientation: the luminaires mark the way and at the same time give it an aesthetic quality.
At the same time, a pleasant, inviting atmosphere is created: the architecture is gently highlighted, textures in the floor material stand out, and the light creates comfort, safety, and emotionality.
Suitable lights
Recommendation
Paver Lights
For entrances, terraces and access routes in paving or slabs. Paver Lights can also be set into walls.
Also possible
Road Studs
On an asphalt approach in front of the building, Road Studs mark the way.
View Road Studs
- Surfaces
- STYLE smooth, NATURE natural stone
- Light colors
- Warm white 2700 K, daylight white 6500 K
- Protection category
- IP68
- Operating voltage
- 9 to 15 V DC
Installation in three steps.
Set the light into the bedding
The light is laid next to the last paving stone as the paving progresses, with the cable in the sand bed.
Connect electrically
All lights are connected in parallel to the low-voltage main line, which an LED driver supplies.
Grout and compact
The light is grouted with the surrounding paving. Compacting uses a rubber apron after thorough sweeping.
Planning documents (2)
Design your architectural vision
Integrate light into your surfaces.
