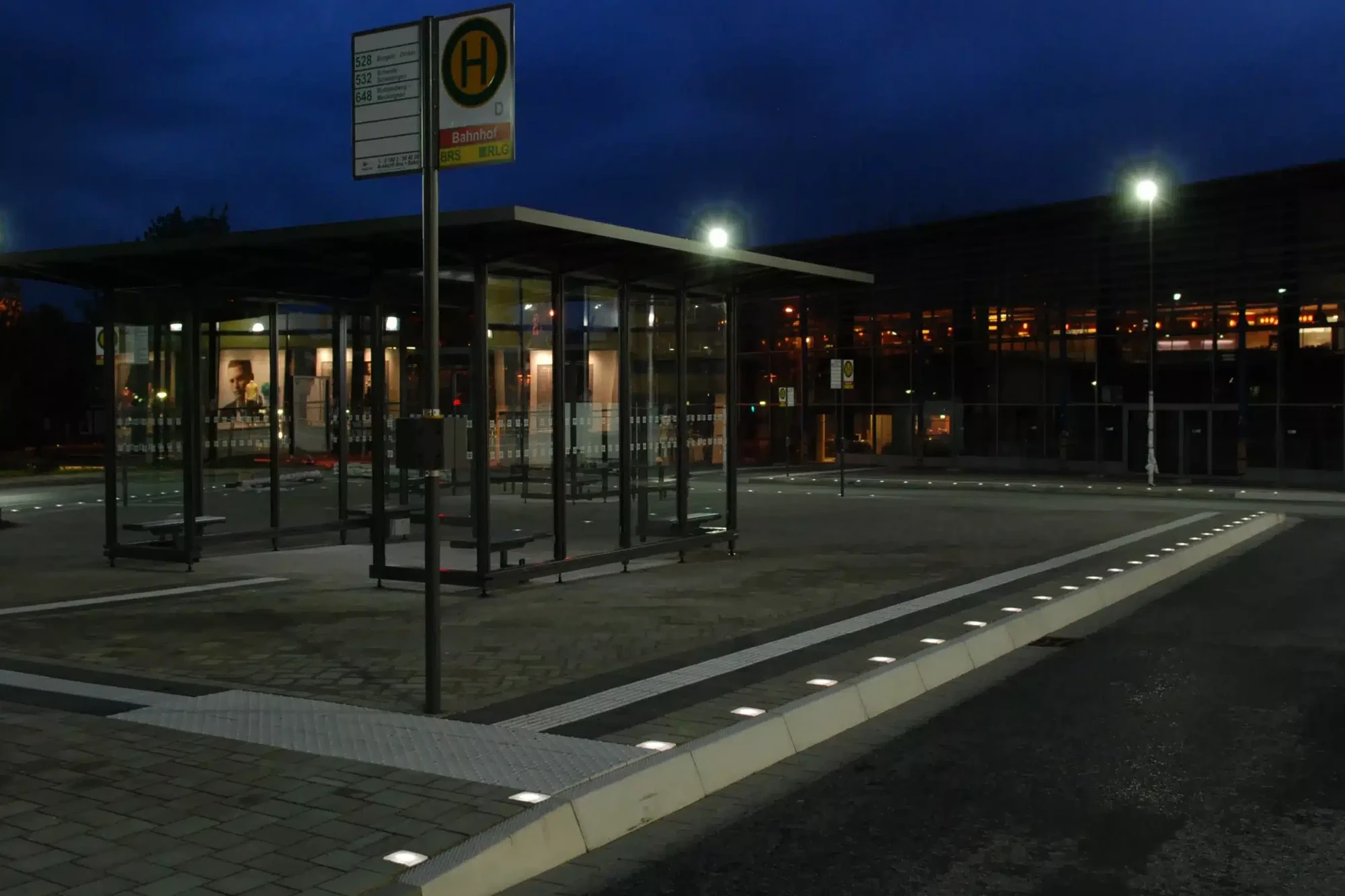

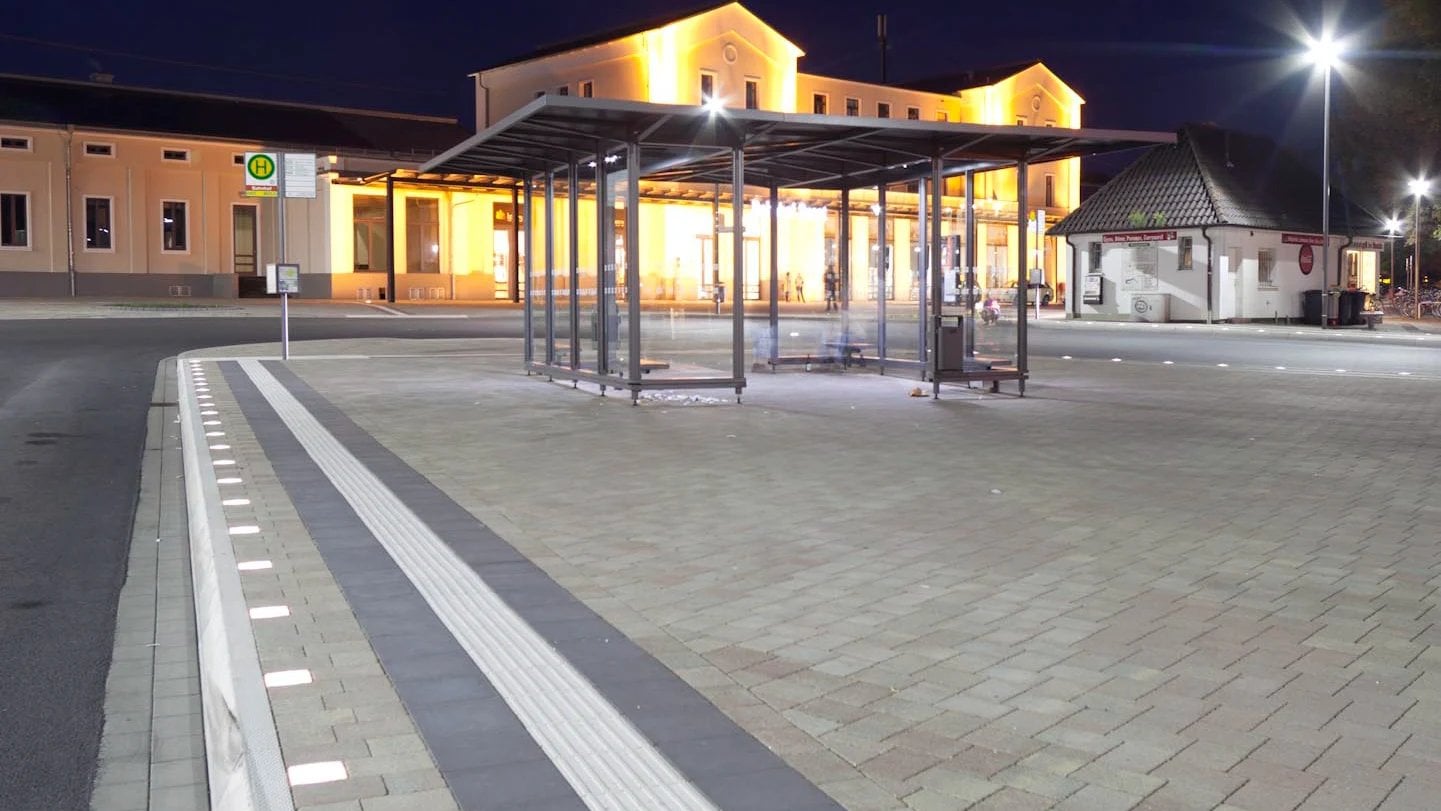

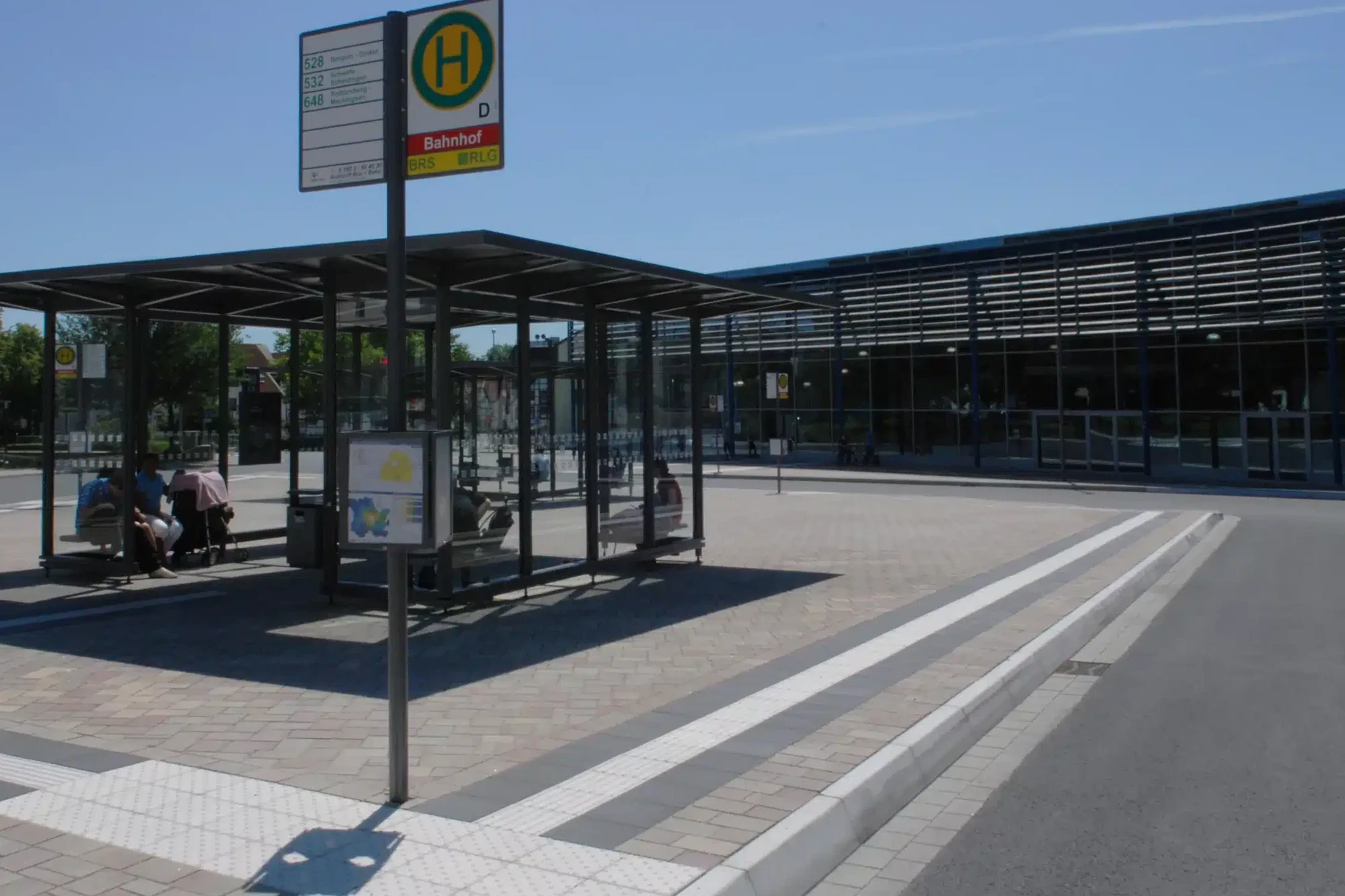

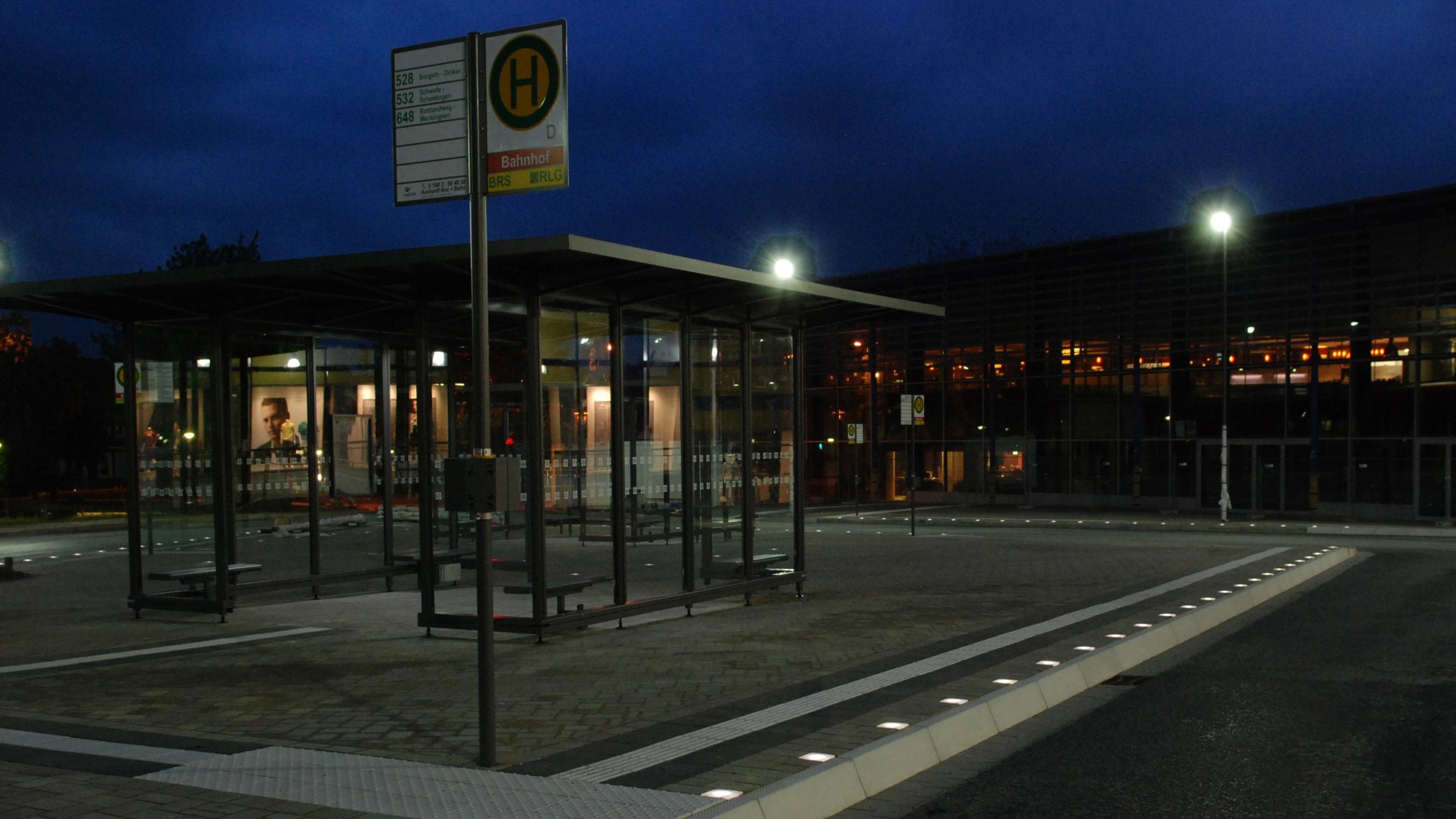

Public transport stops and platforms
- Beckstone LED Paver Light
Paver Lights show edges and routes in the paving of the stop.
The planning problem
Curbs at bus and train stops pose a particular accident risk for older people and those with impaired vision. Fall protection is key. Paver Lights as orientation assistance help recognize distances to the sidewalk surface even in snowfall.
How light in the ground improves accessibility
Dangerous edges
The multitude of signs and other visual stimuli makes public traffic areas increasingly confusing. Hazards for pedestrians and drivers are clearly marked exactly where they occur: directly on the ground!
Monument protection

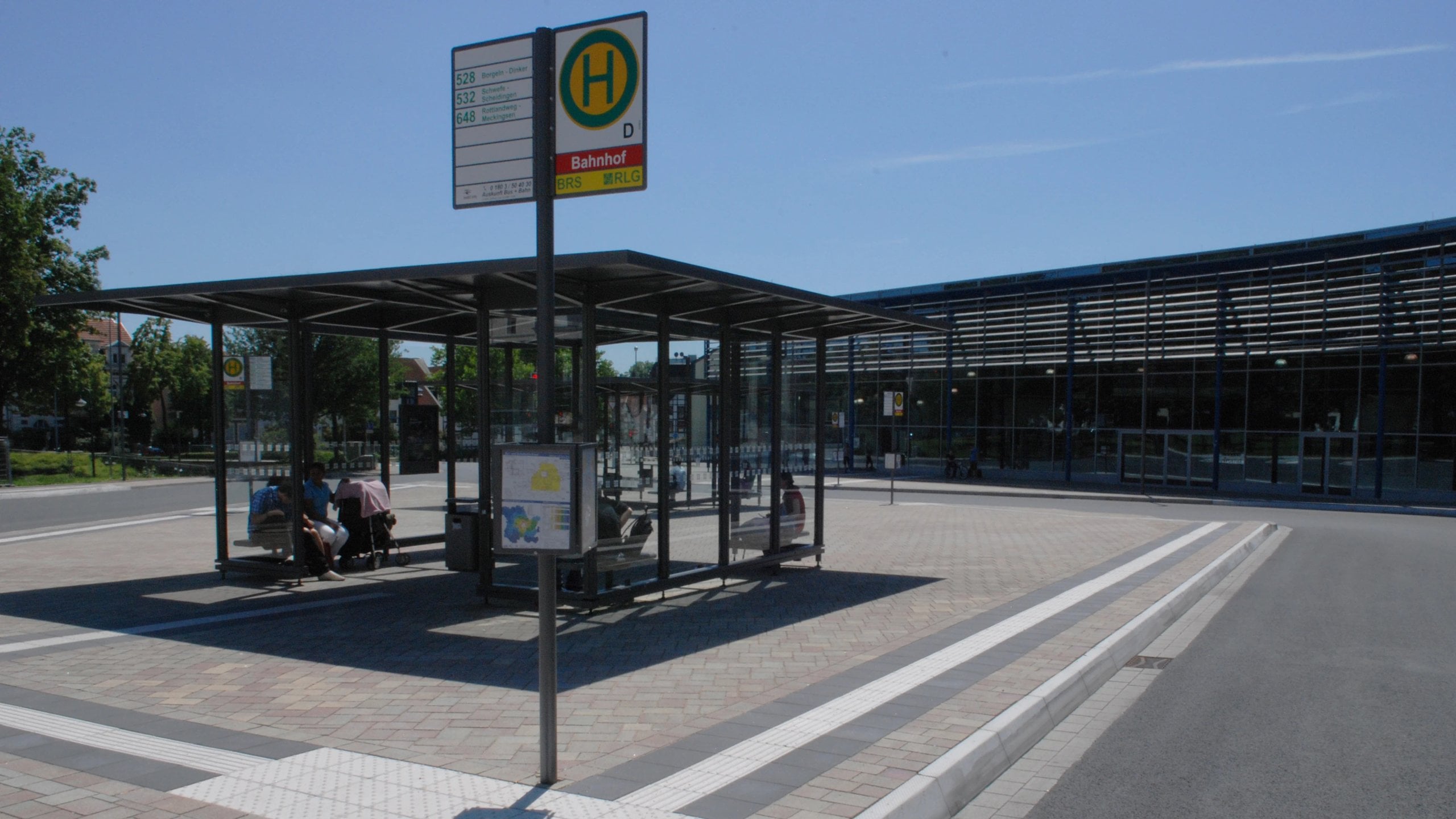

Paver Lights offer the opportunity to highlight nighttime hazards without detracting from the historical appearance of your cityscape in daylight.
Suitable lights
Recommendation
Paver Lights
For paved stops and platforms: the light sits in the paving pattern and traces the edge and the guidance line.
Also possible
Road Studs
Where the bus bay or the access is asphalt, Road Studs mark the edge in the surface.
View Road Studs
- Operating voltage
- 9 to 15 V DC
- Light colors
- Warm white 2700 K, daylight white 6500 K
- Protection category
- IP68
- Maximum cable length
- 100 m with up to 50 luminaires
Example installation
Installation in three steps.
Set the light into the bedding
The light is laid next to the last paving stone as the paving progresses, with the cable in the sand bed.
Connect electrically
All lights are connected in parallel to the low-voltage main line, which an LED driver supplies.
Grout and compact
The light is grouted with the surrounding paving. Compacting uses a rubber apron after thorough sweeping.
Planning documents (2)
Start your project with us
Do you have questions or need a customized solution for your municipality?
