Plazas
- Beckstone LED Paver Light

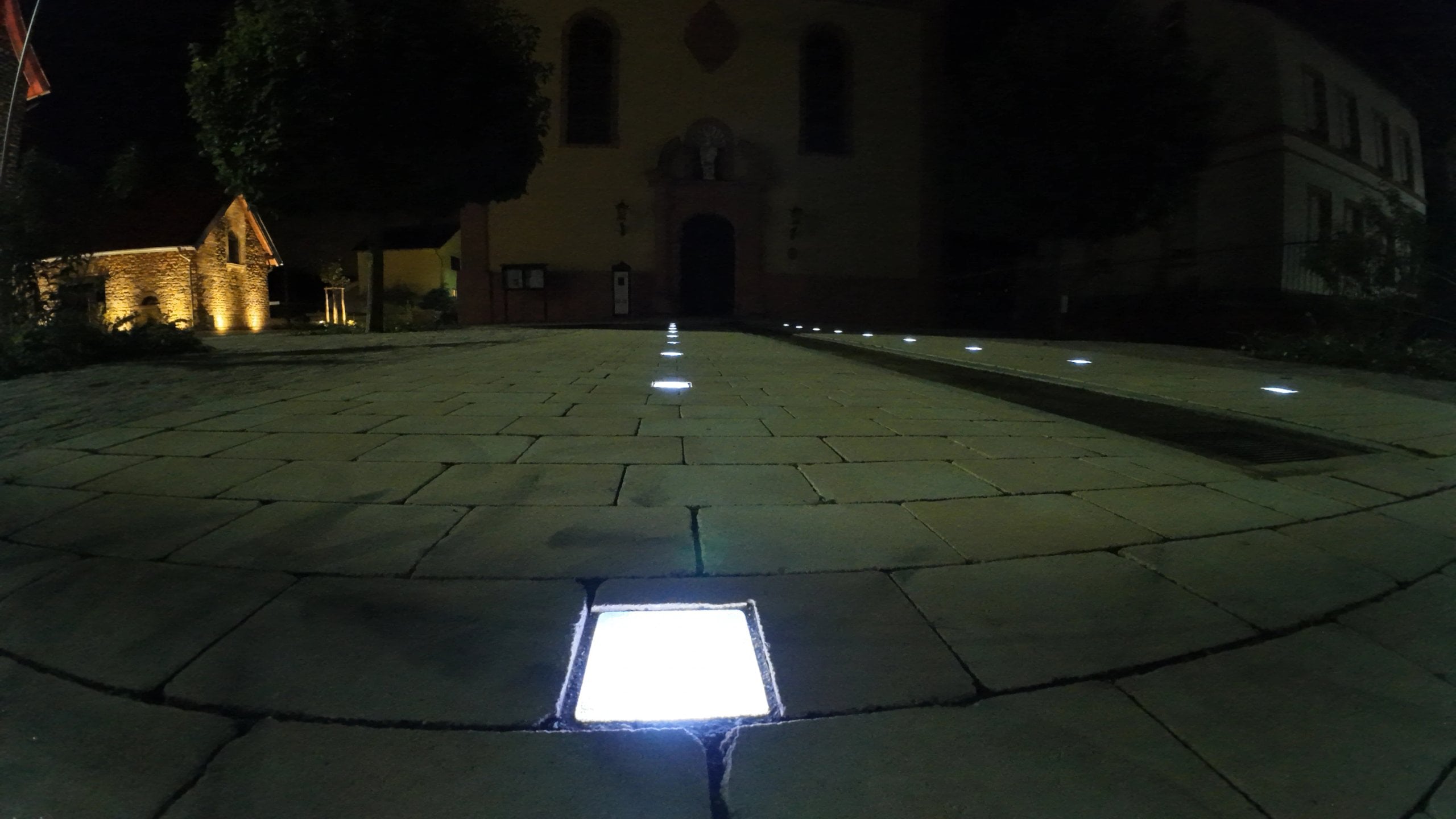

Lines of light structure the plaza at night without flooding it.
The planning problem
Due to more sophisticated leisure activities, the increasing quality of public infrastructure, and our demands for high-quality urban design, expectations for attractive lighting are also growing. The increasing use of lighting designers clearly confirms this development.
Beckstone
In many places, however, these efforts are limited to illuminating buildings and decorative paving. Comprehensive illumination is often neither desirable nor affordable. “Sculptural” luminaires can only partially meet this need because they are usually expensive to purchase and large areas for gatherings and events often need to remain barrier-free.
Paver Lights offer you the opportunity to completely restructure your squares and paths at night with luminous lines and spatial boundaries, to frame meeting places and public furniture with inviting light, and to show your passers-by safe and barrier-free paths.
In more remote areas that previously could not be illuminated for cost reasons, Paver Lights increase actual and perceived safety and thus increase citizen satisfaction. In addition to the colors Crystal, Blue and Amber there are luminaire bodies in stone colors such as Granite Grey, Porphyry Red and Sand Beige, as well as in White, that blend in unobtrusively in your areas during the day.
Suitable lights
Recommendation
Paver Lights
For paved and slab surfaces: the lights sit in the paving pattern and structure the plaza.
Also possible
Road Studs
On asphalt approaches and lanes at the plaza, Road Studs mark the driving route.
View Road Studs
- Surfaces
- STYLE smooth, NATURE natural stone
- Light colors
- Warm white 2700 K, daylight white 6500 K
- Maximum cable length
- 100 m with up to 50 luminaires
- Protection category
- IP68
Installation in three steps.
Set the light into the bedding
The light is laid next to the last paving stone as the paving progresses, with the cable in the sand bed.
Connect electrically
All lights are connected in parallel to the low-voltage main line, which an LED driver supplies.
Grout and compact
The light is grouted with the surrounding paving. Compacting uses a rubber apron after thorough sweeping.
Planning documents (2)
Redefine your public spaces
Paver Lights enhance safety and design in your urban areas.
