Traffic islands and parking
- Road Studs, LED Road Studs
Road Studs make islands, entrances and driving lanes visible in the dark.
The planning problem

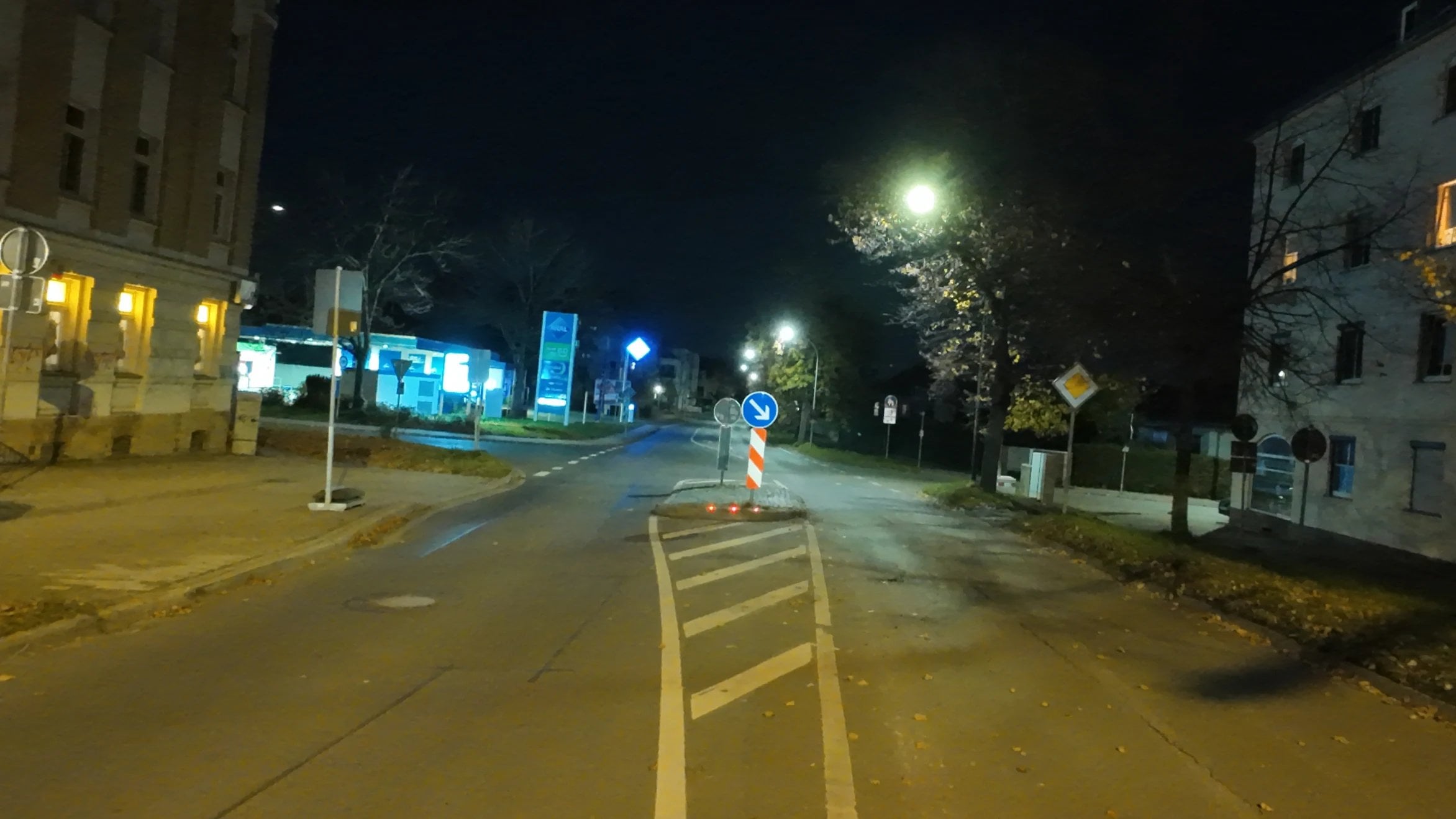

Even properly marked traffic islands are often overlooked or their width underestimated. Low beams pick them up late, concrete gray curbs are hard to see, and reflective strips wear down through rubber abrasion.
Parking areas have the same problem: islands at barriers and pay stations, edges and driving lanes are hard to read at night, and markings on the surface barely work in the dark.

Mark islands and driving lanes at ground level along their edges.
Road Studs are set along the outer contour and at the tip of traffic islands, in parking areas at islands in front of barriers and pay stations and along the driving lanes. They do not replace signage but add a marking in the surface that is not tied to poles or beacons.
The variant depends on power supply and load on site.

Suitable lights
Recommendation
Road Studs
For island edges, entrances and driving lanes in asphalt: Road Studs make them visible in the dark.
Also possible
Paver Lights
On paved islands, along curbs and on paved parking areas, Paver Lights fit into the paving pattern.
View Paver Lights
- Power supply
- Solar
- Load capacity
- 40 t (FORCE: 30 t aluminum, 60 t stainless steel)
- Protection category
- IP68, IK10
- Operating temperature
- −25 °C to +85 °C
Installation in three steps.
Drill, clean and dry the hole
The hole is drilled at the defined location, cleared of drilling dust and fully dried with hot air.
Insert alignment aid and adhesive
The alignment aid aligns the Road Stud. The adhesive is poured in, and the LEDs must be aligned correctly.
Let it cure
Once the adhesive has cured, the alignment aid is removed. Curing time depends on the weather.
Planning documents (18)
- Road Stud ONE-WAY data sheetOpen file
- Road Stud ONE-WAY installation manualOpen file
- Road Stud TWO-WAY data sheetOpen file
- Road Stud TWO-WAY installation manualOpen file
- Road Stud TWO-WAY S data sheetOpen file
- STARWAY data sheetOpen file
- STARWAY installation manualOpen file
- HALO data sheetOpen file
- HALO installation manualOpen file
- Road Stud CROSSWALK data sheetOpen file
- Solar BASIC data sheetOpen file
- Solar BASIC installation manualOpen file
- Solar CONTROL data sheetOpen file
- Solar CONTROL installation manualOpen file
- Solar FORCE data sheetOpen file
- Solar FORCE installation manualOpen file
- Solar PERFORMANCE data sheetOpen file
- Solar PERFORMANCE installation manualOpen file
Start your traffic island and parking project
Enhance visibility.
